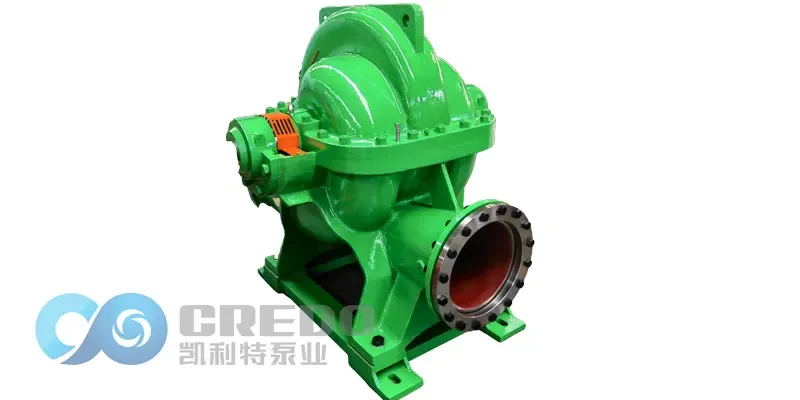

How to Interpret Nameplate Parameters and Select the Right Split Casing Pump
Split casing pumps are widely used in industrial and municipal applications due to their high efficiency, durability, and ease of maintenance. To ensure optimal performance, it’s crucial to understand the technical parameters displayed on the pump’s nameplate and use them as a guide for proper selection. This article explores how to interpret nameplate information and choose a suitable split casing pump based on specific operational requirements.
Understanding Key Parameters on a Split Casing Pump Nameplate
The nameplate of a split casing pump typically includes essential data that reflects its operational capacity. Understanding these values is vital for evaluating pump performance and compatibility with the intended system.
1. Flow Rate (Q)
Flow rate indicates the volume of fluid the pump can deliver per unit time. It is commonly expressed in cubic meters per hour (m³/h) or liters per second (L/s). A higher flow rate suggests greater pumping capacity. Choosing the correct flow rate ensures the system meets its demand without overloading the pump.
2. Head (H)
Head refers to the height the pump can raise the fluid, measured in meters (m). It includes both static and dynamic components and determines the pressure the pump must overcome. A higher head means the pump can deliver water to greater elevations or through longer piping systems.
3. Speed (RPM)
Speed is measured in revolutions per minute and represents the rotational speed of the pump shaft. Pump speed directly influences both the flow and head. Typically, higher speeds increase both parameters, but it’s important to match pump speed with the system design and motor characteristics.
4. Power (P)
Power represents the energy required to operate the pump, usually given in kilowatts (kW). It depends on flow rate, head, and pump efficiency. Selecting the correct power rating ensures reliable and economical operation.
How to Select a Suitable Split Casing Pump
Proper selection of a split casing pump involves evaluating various operational and system-specific factors to ensure optimal performance and reliability.
1. Determine Flow Requirements
Start by calculating the maximum and average flow rates required by the system. This helps identify a pump that can handle peak demand without compromising efficiency.
2. Calculate Total Head
Assess the system’s total head, including:
Static head: Vertical lift from source to delivery point
Dynamic head: Frictional losses in pipes, fittings, and valves
Safety margin: Additional head for unforeseen conditions
3. Choose Appropriate Pump Type and Speed
Split casing pumps can be configured as high-speed or low-speed based on the application. Select a pump type compatible with your fluid characteristics, motor specifications, and overall system design.
4. Estimate Required Power
Use the following formula to estimate the pump power requirement:
Where:
P = power (W)
Q = flow rate (m³/s)
H = head (m)
ρ = fluid density (kg/m³)
g = gravity (9.81 m/s²)
η = pump efficiency (typically 0.6 to 0.85)
Ensure the selected motor can supply sufficient power with an appropriate margin.
5. Assess the Working Environment
Evaluate environmental conditions such as:
Fluid temperature and properties
Corrosive or abrasive characteristics
Humidity and ambient temperature
Accessibility for maintenance
6. Review System Configuration
The physical layout, including pipe length, diameter, number of elbows, and elevation changes, affects pump performance. Ensure the selected pump fits seamlessly into the system design.
7. Consider Maintenance and Lifecycle Costs
Opt for pumps that are easy to maintain and supported by reliable after-sales service. Factor in long-term costs like energy consumption, repair frequency, and availability of spare parts.
Conclusion
Interpreting the nameplate parameters of a split casing pump is essential for understanding its capabilities and selecting the right unit for your system. Key values such as flow, head, speed, and power provide a foundation for evaluating pump performance. By considering operational requirements, environmental conditions, and system configuration, you can select a split casing pump that delivers reliable, efficient, and cost-effective performance.
Understanding these principles not only ensures optimal pump operation but also contributes to the overall success and sustainability of the pumping system.
