Understanding Partial Load Operation, Exciting Forces, and Minimum Continuous Stable Flow in Split Casing Pumps

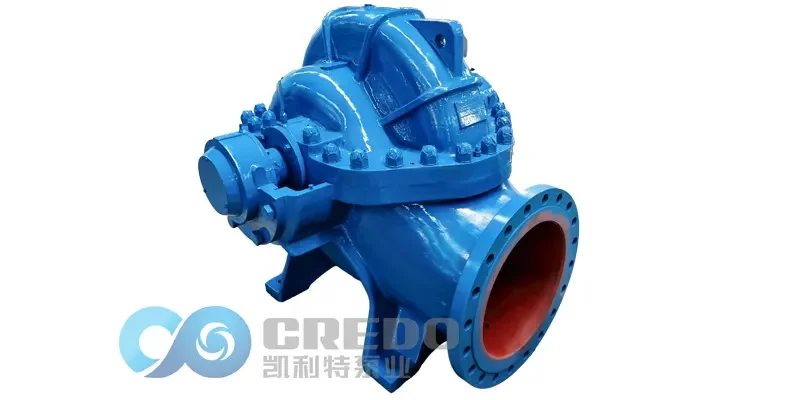

Split casing pumps are designed to operate most efficiently at their Best Efficiency Point (BEP). However, in real-world scenarios, various factors often cause the pump to deviate from BEP and operate at partial load. This deviation can lead to several hydraulic and mechanical issues that impact performance, reliability, and longevity. Understanding the behavior of split casing pumps under partial load conditions is crucial for system optimization, failure prevention, and lifecycle cost reduction.

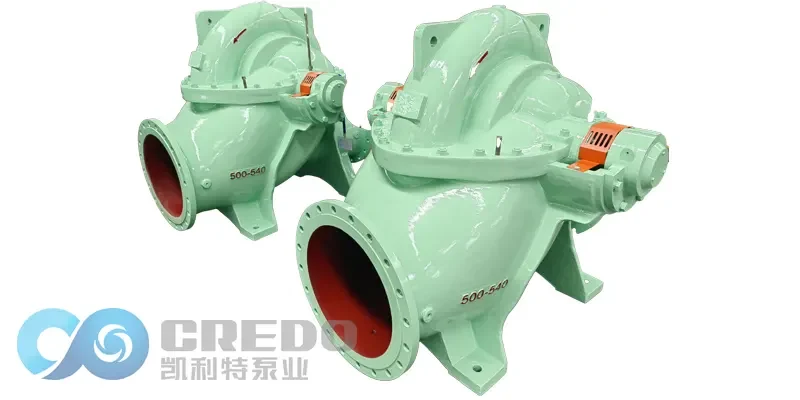

Partial Load Operation
Partial load operation refers to the state where the pump operates below its full load or BEP. This condition can cause flow instabilities, increased radial forces, and elevated levels of vibration and noise. In extreme cases, it may also result in performance degradation and cavitation.
Hydraulic Phenomena Under Partial Load
When an split casing pump operates at partial load, the flow dynamics change significantly. Phenomena such as internal flow recirculation, pressure fluctuations (exciting forces), and flow separation are commonly observed. These issues originate from flow instabilities around the impeller and diffuser or volute.
Exciting forces are generated when pressure fluctuations occur due to flow separation and recirculation. These forces act on the pump rotor and are typically the dominant source of vibration, especially in high-speed pumps.
Flow recirculation may happen both externally (inlet recirculation) and internally (outlet recirculation). The reverse flow can interfere with the primary flow, causing pressure pulsations and turbulence. This interaction negatively affects axial thrust, impeller stability, and the dynamic performance of the rotor.
Flow Separation and Noise Generation
As the pump deviates further from its design point, adverse flow conditions on the blade surfaces lead to boundary layer separation. This unstable flow causes vibrations, pressure pulsations, and increased noise levels. In some cases, it may also trigger cavitation, especially in high-head, high-power split casing pumps.
Moreover, when operating at very low flow rates, the temperature of the pumped fluid may rise due to the energy transferred from the driver. This can lead to vaporization, internal damage, or even catastrophic pump failure due to increased vapor pressure.

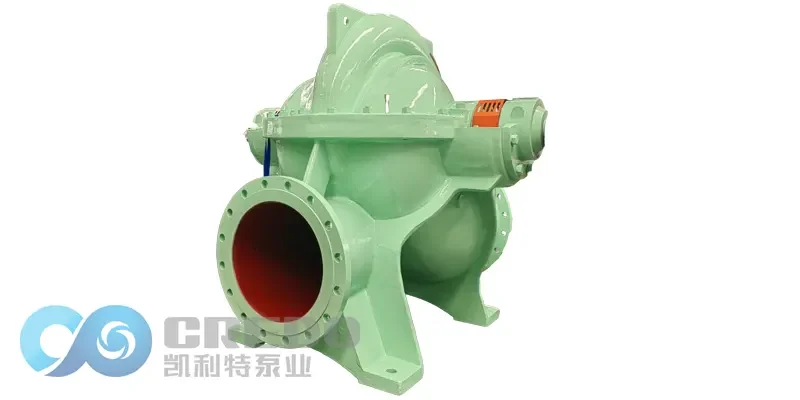

Minimum Continuous Stable Flow Rate
The minimum continuous stable flow (MCSF) is the lowest flow rate at which a pump can operate continuously without instability or damage. For split casing pumps, the MCSF is determined by the suction specific speed and the geometry of the pump’s hydraulic components.
It is important to note that the MCSF remains consistent whether the pump operates at a fixed or variable speed. This is because the suction specific speed is determined by the structural design of the pump and does not vary with motor speed.
Conclusion
Understanding the behavior of split casing pumps under partial load conditions is essential for maintaining optimal performance and reliability. Key considerations include monitoring flow separation, exciting forces, and observing the minimum continuous stable flow. Proper system design and operational adjustments can mitigate the adverse effects of partial load operation and extend pump life.
