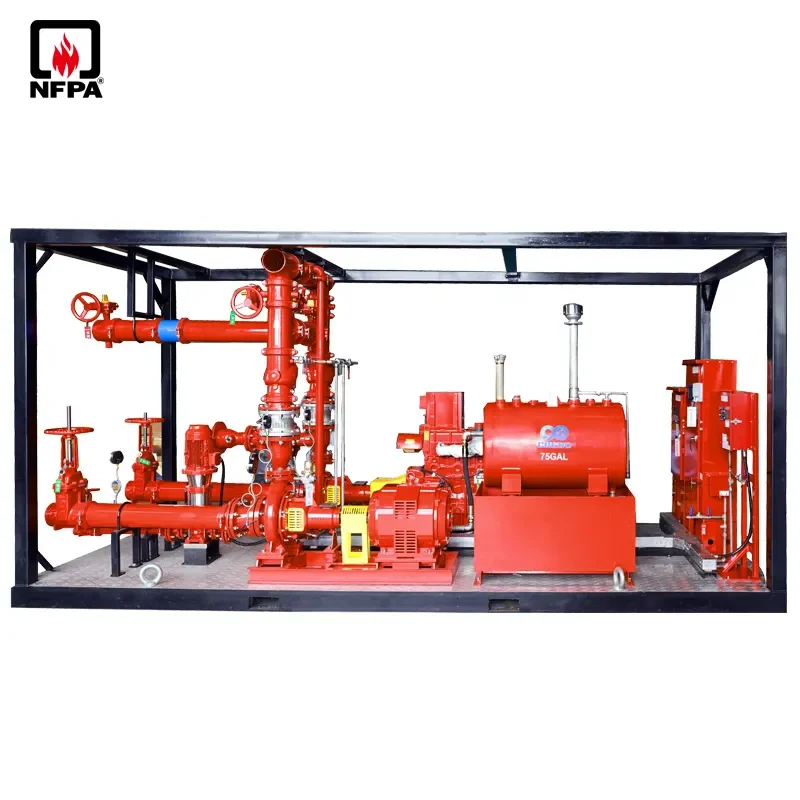

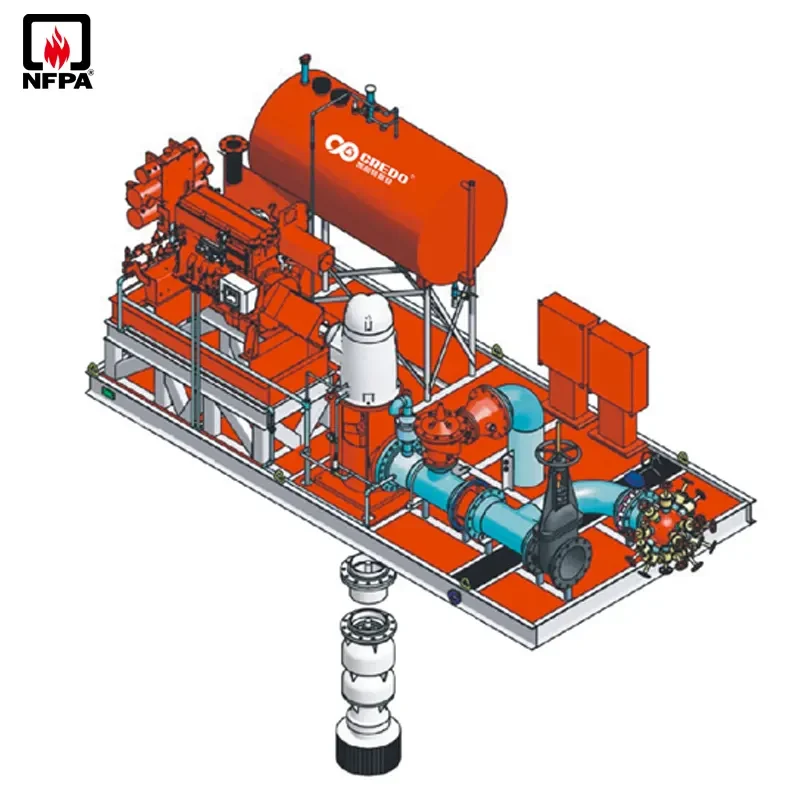

The skid-mounted fire pump system is a fully NFPA 20 compliant, pre-packaged firefighting solution that combines pumps, drivers, controllers, and pipework on a single structural skid. This modular and containerized unit simplifies installation, reduces onsite labor, and ensures faster project delivery. With flexible configurations, the system can be customized with or without protective enclosures and tailored dimensions, making it highly adaptable for diverse fire protection applications across industrial, commercial, and municipal projects.
Key Design Features
NFPA 20 Compliant: Certified to meet international fire protection standards, ensuring safety and reliability.
Pre-Packaged & Factory-Assembled: Pumps, drivers, controllers, and pipework integrated on one skid for plug-and-play installation.
Flexible Configurations: Available with or without full protective enclosures, customizable to specific project needs.
Compact & Modular Design: Saves space, simplifies logistics, and accelerates commissioning.
Reduced Onsite Labor: Minimizes installation time and cost with a ready-to-install unit.
Customizable Dimensions: Skid size and layout can be tailored to suit plant room or containerized installations.
Wide Application Range: Ideal for industrial complexes, commercial buildings, refineries, power plants, and municipal fire protection systems.
| Item NO. | Pump Type | Capacity (GPM) | Head (PSI) |
| 1 | Split Case Pump | 50-8000 | 40-400 |
| 2 | Vertical Turbine Pump | 50-6000 | 40-400 |
| 3 | End Suction Pump | 50-1500 | 40-224 |
Our pump testing center is authorized with a National First-Grade Certificate of Accuracy , ensuring reliable and precise test results. All equipment is built to meet international standards such as ISO and DIN.
Testing Capabilities
Wide Pump Range: Split case pumps, vertical turbine pumps, multistage pumps, and more.
High Power Capacity: Motor power up to 2,800 kW.
Large Flow Capacity: Suction diameters up to 2,500 mm.
Advantages
Certified Accuracy: National accreditation guarantees credible test reports.
Global Standards: Compliance with ISO and DIN supports international projects.
Quality Assurance: Each pump is fully tested before delivery.
With these advanced facilities, we ensure every pump delivers safe, efficient, and reliable performance.
