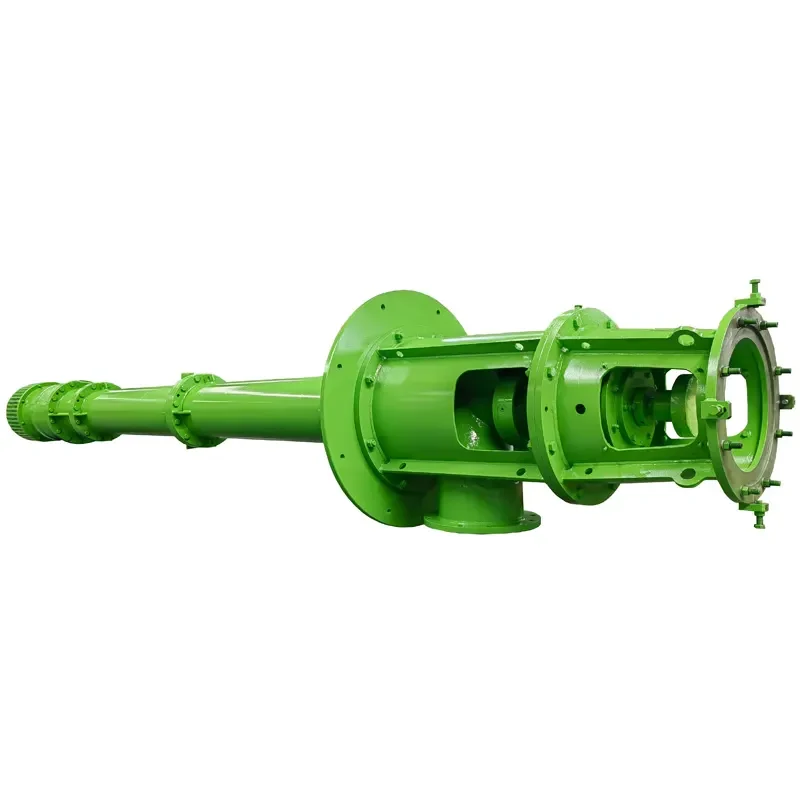

Engineered for demanding hydraulic conditions, the multistage vertical turbine pump is designed to deliver high heads and large flow with maximum efficiency. Thanks to its multistage impeller configuration and vertical bowl-column-head structure, it ensures stable, reliable performance even in continuous-duty and heavy-duty operations. The multistage vertical turbine pump is especially suitable for projects where high pressure, long pumping distance, and energy efficiency are critical.
Key Design Features
Multistage Impeller Configuration: Multiple impellers in series deliver high heads while maintaining stable performance.
Bowl Assembly Design: Hydraulically optimized bowl with suction bell and impellers ensures smooth water entry and efficient lifting.
Vertical Discharge Column: Provides robust support, housing line shaft bearings that can be water- or oil-lubricated for durability.
Flexible Drive Options: Can be driven by vertical hollow shaft motors, solid shaft motors, or right-angle gear drives coupled to diesel or steam turbines.
Material Flexibility: Available in cast iron, stainless steel, bronze, and duplex alloys to handle clean water, seawater, and corrosive or abrasive fluids.
Capacity: 50-2200m3/h
Head: 5-220m
Power: 18.5-5600kw
Outlet dia: 150-1000mm
Temperature:-20℃-80℃
Range chart: 1480rpm
Capacity: 800-10000m3/h
Head: 5-220m
Power: 18.5-5600kw
Outlet dia: 150-1000mm
Temperature:-20℃-80℃
Range chart: 590rpm-980rpm
Raw Water Intake: Extraction from rivers, lakes, reservoirs, and deep wells.
Municipal Water Supply: Large-scale water distribution and treatment systems.
Irrigation & Agriculture: High-capacity water delivery for farming and crop irrigation.
Power Plants: Circulating and cooling water systems in thermal and nuclear facilities.
Industrial Processing: Continuous water supply for steel plants, refineries, chemical industries, and paper mills.
Drainage & Flood Control: Removing excess water from low-lying or flood-prone areas.
Desalination & Seawater Intake: Supplying feedwater for desalination plants and marine facilities.
| Pump Parts | For Clear Water | For Sewage | For Seawater |
| Discharge Elbow / Casing | Carbon Steel | Carbon Steel | S.S / Super Dulex |
| Diffuser / Suction Bell | Cast Iron | Cast Iron / Ductile Iron / Cast Steel / S.S | S.S / Super Dulex |
| Impeller / Impeller Chamber / Wear Ring | Cast Iron / Cast Steel | Ductile Iron / S.S | S.S / Super Dulex |
| Shaft / Shaft Sleeve / Coupling | Steel / S.S | Steel / S.S | S.S / Super Dulex |
| Guide Bearing | PTFE / Thordon | ||
| Remark | Final material depends on the liquid condition or the client’s request. | ||
Our pump testing center is authorized with a National First-Grade Certificate of Accuracy , ensuring reliable and precise test results. All equipment is built to meet international standards such as ISO and DIN.
Testing Capabilities
Wide Pump Range: Split case pumps, vertical turbine pumps, multistage pumps, and more.
High Power Capacity: Motor power up to 2,800 kW.
Large Flow Capacity: Suction diameters up to 2,500 mm.
Advantages
Certified Accuracy: National accreditation guarantees credible test reports.
Global Standards: Compliance with ISO and DIN supports international projects.
Quality Assurance: Each pump is fully tested before delivery.
With these advanced facilities, we ensure every pump delivers safe, efficient, and reliable performance.
