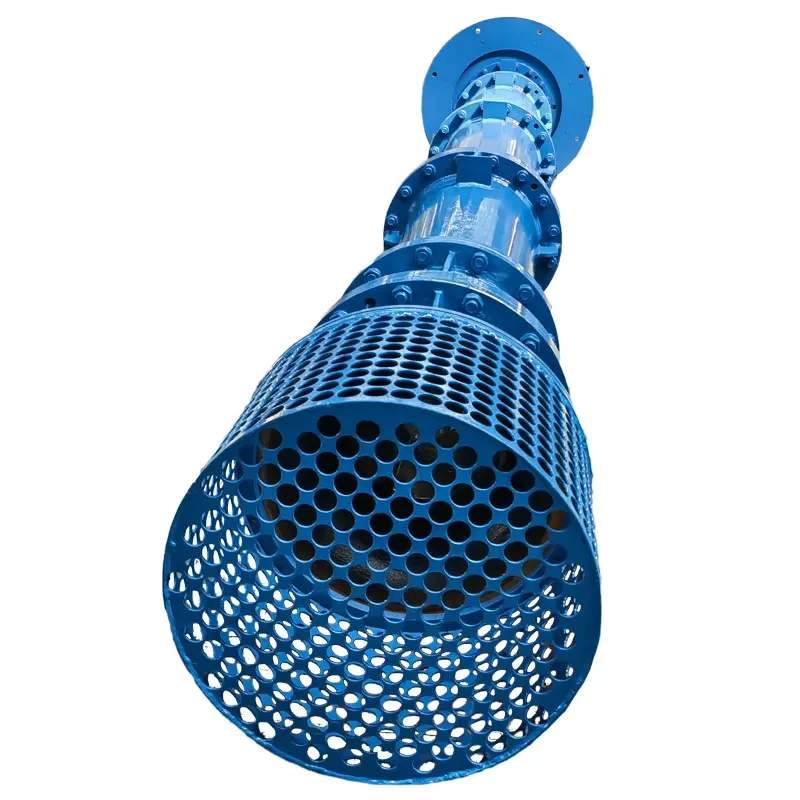

The vertical lineshaft turbine pump is a highly efficient and reliable pumping solution widely used for deep well and high-capacity water applications. With the motor positioned above ground and power transmitted through a vertical shaft to the pump bowl assembly, it offers durability, ease of maintenance, and adaptability for a wide range of industries.
Key Design Features
Above-Ground Drive Motor: Can be driven by vertical hollow shaft motors, solid shaft motors, or right-angle gear drives.
Lineshaft Power Transmission: A vertical shaft transfers power to the impellers, supported by line shaft bearings.
Bearing Lubrication Options: Water-lubricated or oil-lubricated line shaft bearings ensure smooth and reliable operation.
Flexible Column Construction: Modular column sections allow customization for different well depths.
Heavy-Duty Bowl Assembly: Precision-designed impellers and wear rings provide high efficiency and long service life.
Easy Maintenance: Motor and drive components remain accessible above ground, simplifying inspection and servicing.
Capacity: 50-2200m3/h
Head: 5-220m
Power: 18.5-5600kw
Outlet dia: 150-1000mm
Temperature: -20℃ – 80℃
Range chart: 1480rpm
Capacity: 800-10000m3/h
Head: 5-220m
Power: 18.5-5600kw
Outlet dia: 150-1000mm
Temperature: -20℃ – 80℃
Range chart: 590rpm-980rpm
Municipal Water Supply & Distribution: For raw water intake, potable water supply, and city pumping stations.
Agricultural Irrigation & Drainage: For farmland irrigation, canal lifting, and large-scale drainage.
Industrial Water Transfer & Cooling: For process water transfer, equipment cooling, and circulation systems.
Power Generation Plants: For cooling water circulation, condenser extraction, and auxiliary systems.
Mining & Mineral Processing: For raw water transport and mine dewatering operations.
Flood Control & Large-Scale Dewatering: For pumping stations, drainage basins, and flood protection.
Desalination & Water Treatment: For seawater or brackish water intake and treatment facilities.
| Pump Parts | For Clear Water | For Sewage | For Seawater |
| Discharge Elbow / Casing | Carbon Steel | Carbon Steel | S.S / Super Dulex |
| Diffuser / Suction Bell | Cast Iron | Cast Iron / Ductile Iron / Cast Steel / S.S | S.S / Super Dulex |
| Impeller / Impeller Chamber / Wear Ring | Cast Iron / Cast Steel | Ductile Iron / S.S | S.S / Super Dulex |
| Shaft / Shaft Sleeve / Coupling | Steel / S.S | Steel / S.S | S.S / Super Dulex |
| Guide Bearing | PTFE / Thordon | ||
| Remark | Final material depends on the liquid condition or the client’s request. | ||
Our pump testing center is authorized with a National First-Grade Certificate of Accuracy , ensuring reliable and precise test results. All equipment is built to meet international standards such as ISO and DIN.
Testing Capabilities
Wide Pump Range: Split case pumps, vertical turbine pumps, multistage pumps, and more.
High Power Capacity: Motor power up to 2,800 kW.
Large Flow Capacity: Suction diameters up to 2,500 mm.
Advantages
Certified Accuracy: National accreditation guarantees credible test reports.
Global Standards: Compliance with ISO and DIN supports international projects.
Quality Assurance: Each pump is fully tested before delivery.
With these advanced facilities, we ensure every pump delivers safe, efficient, and reliable performance.
