Split Case Pump Vibration: Operation, Reliability, and Maintenance Guide
Vibration in a split case pump is a critical factor that directly impacts pump operation, reliability, and maintenance. Understanding the causes, effects, and mitigation strategies is essential for ensuring long-term performance and minimizing downtime.

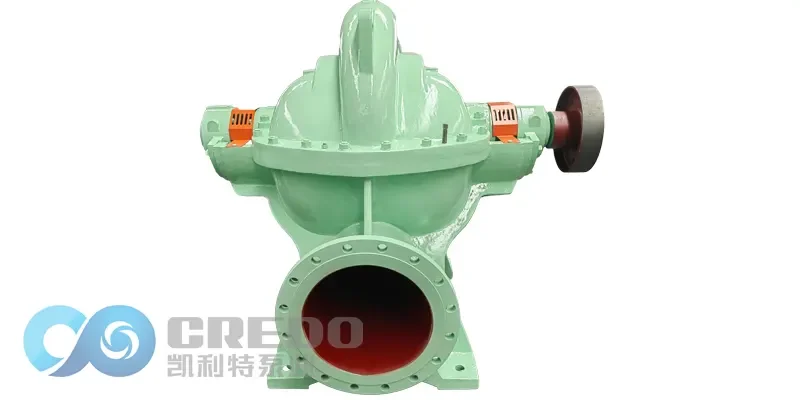

1. Understanding Split Case Pump Vibration
The rotating shaft (rotor) of a split case pump generates vibrations that are transmitted to the pump body, connected piping, and adjacent equipment. Vibration amplitude typically varies with shaft rotational speed. At critical speed, resonance may occur, significantly amplifying vibration levels.
Vibration can generally be classified into:
Free vibration: Naturally decays over time in a stable system.
Forced vibration: Caused by external factors such as unbalance or misalignment; can persist or grow if left unchecked.
Excessive vibration can indicate mechanical issues or signal impending failure, leading to:
Noise and operational disruption
Reduced reliability and efficiency
Potential safety hazards

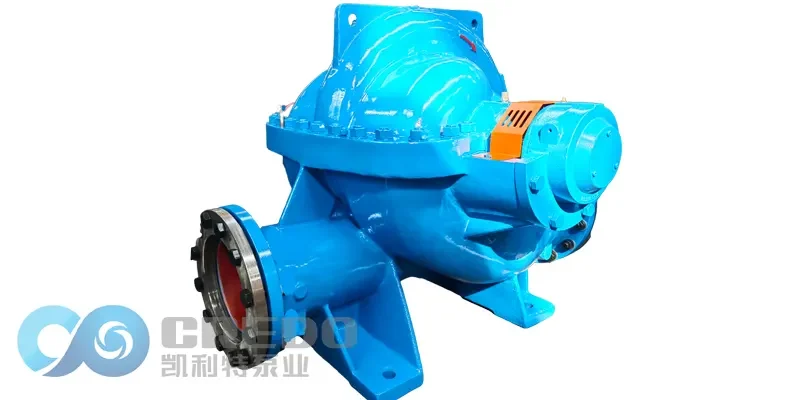

2. Common Causes of Split Case Pump Vibration
2.1 Rotor Unbalance
Unbalanced impellers or rotors are a primary source of vibration. Even minor unbalance can generate significant radial forces, reducing bearing life and affecting pump performance.
2.2 Shaft Misalignment
Misalignment occurs when the centerlines of coupled shafts do not match. This can be:
Radial misalignment: shafts offset but parallel
Angular misalignment: shafts intersect at an angle
Effects include cyclical forces, bending moments, and vibration peaks often at 2X the shaft’s rotational frequency. Regular alignment checks are essential.
2.3 Resonance
Resonance occurs when the excitation frequency aligns with the natural frequency of the pump system, potentially leading to dangerously high vibration levels. This is particularly critical in:
Variable-speed pump applications (VSD motors)
Steam turbine-driven pumps
3. Effects of Vibration on Pump Performance
Excessive vibration can cause:
Accelerated wear on bearings, seals, and couplings
Structural fatigue in pump casing and connected piping
Decreased operational efficiency and higher maintenance costs
Potential catastrophic failures if left unaddressed
4. Mitigation and Maintenance Strategies
4.1 Rotor Balancing
Dynamic or static balancing of the pump rotor minimizes vibration by ensuring uniform mass distribution along the rotating shaft.
4.2 Precision Shaft Alignment
Accurate alignment of coupled shafts reduces bending moments and cyclic loads. Use laser alignment tools or dial indicators for routine maintenance checks.
4.3 System Design and Installation
Specify pumps accurately for the intended operating range
Proper installation reduces external excitation forces
Include damping mechanisms where necessary
4.4 Continuous Vibration Monitoring
Implement vibration sensors and predictive maintenance software to detect early signs of mechanical issues, enabling proactive corrective actions.
4.5 Resonance Prevention
Evaluate natural frequencies and mode shapes during design
Compare with excitation frequencies to avoid resonance
Apply corrective measures such as balancing, damping, or stiffening the system
5. Conclusion
Vibration management is crucial for split case pump reliability and operational efficiency. By understanding the causes of vibration, monitoring system behavior, and applying proper balancing, alignment, and maintenance practices, operators can:
Extend pump lifespan
Reduce unplanned downtime
Maintain safe and efficient operation
Regular monitoring, expert maintenance, and proactive corrective measures ensure your split case pump system operates reliably under all conditions.
